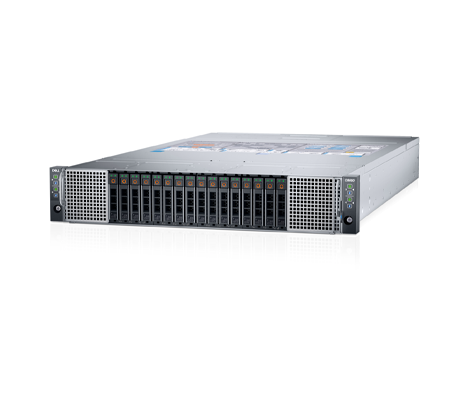

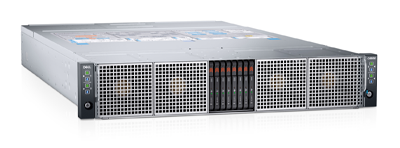

Up to 4x hot-swappable, 2-socket Dell PowerEdge C6620 server nodes are housed in the 2U Dell PowerEdge C6600 chassis. Dual 4th and 5th Generation Intel Xeon Scalable processors, with up to 64 cores per processor, are supported per node for a total of 448 cores per chassis. Each node can provide a maximum capacity of up to 4TB operating at speeds of up to 5600 MT/s depending on configuration and CPU. The system can also be outfitted with up to 2x 75W low-profile, half-length GPUs.
Maximum memory capacity per node is achieved using 16x 256GB DDR5 memory modules. With each chassis outfitted with 4x dual socket Dell PowerEdge C6620 server nodes, each with 56-core CPUs adding up to 448 cores per chassis, that would provide up to 8,960 cores in a standard 42U rack. Housed in the PowerEdge C6600 enclosure, the multi-node Dell PowerEdge C6620 server node is a compute-dense system built for workloads that require a lot of computing power.

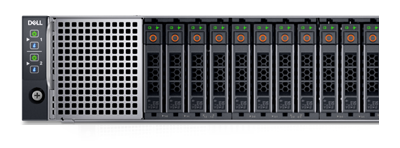

With a cyber-resilient architecture, the PowerEdge C6620 server node features several options for storage and PSU configurations. Users have the option to install up to 16x 2.5-inch SAS, SATA, or NVMe HDDs or SSDs, up to 8x E3.s NVMe SSD drives, or simply have a system with no backplane for compute only. This platform supports PCIe Gen5 offering twice the speed compared to Gen4 PCIe slots to quickly access and transport data. This system offers optional liquid cooling.
Front BaysIf you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
