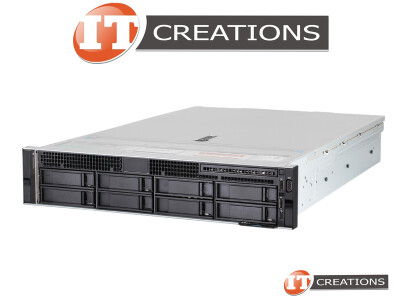

DELL EMC POWEREDGE R740 RACK SERVER 2U 3.5 INCH (DELL R740 3.5 8 BAY)

Product Details:

DELL EMC POWEREDGE R740 RACK SERVER 2U 3.5 INCH LARGE FORM FACTOR LFF 8 BAY

MANUFACTURER: DELL
PART NUMBER: DELL R740 3.5 8 BAY

NOTE: THIS MODEL IS A STANDARD OPTION ONLY, IT DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS

PROCESSOR SUPPORT

MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES
PROCESSOR CORES: UP TO 28 CORES PER PROCESSOR

MEMORY SUPPORT

MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS RDIMM OR LRDIMM / ( 12 ) TWELVE NVDIMM / DPCMM+LRDIMM
MEMORY SIZE: UP TO 3TB ECC RDIMM OR LRDIMM / 192GB NVDIMM / 6.14TB DCPMM / 7.68TB DPCMM+LRDIMM
MEMORY SPEEDS: DDR4-2933MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )

STORAGE SUPPORT

HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 3.5 INCH LFF HOT PLUG HARD DRIVES ( HDD OR SSD )
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 SSD VIA PCIE BOSS CARD ( OPTIONAL )
STORAGE TYPE: HDD / SDD / M.2
STORAGE PROTOCOL: SAS / SATA / NVME
FRONT BAYS MAX STORAGE SIZE: 128TB ( SAS / SATA HDD OR SSD )
M.2 VIA BOOT MAX STORAGE SIZE: 2 X 240GB OR 2 X 480GB

-NOTE: M.2 PCIE BOSS CARD IS OPTIONAL - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: UP TO ( 8 ) EIGHT PCI-E 3.0 SLOTS
PCI INTERFACE TYPE: TYPES VARY BASED ON CONFIGURATION DESIRED - MAX OF 4 X16 LANES

-NOTE: NO RISER OPTION ALSO AVAILABLE - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

POWER SUPPORT

NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
MAX POWER IN WATTAGE: 2400W ( PER POWER SUPPLY )

OPERATING SYSTEMS SUPPORTED

- CANONICAL UBUNTU LTS
- CITRIX HYPERVISOR
- ORACLE LINUX
- MICROSOFT WINDOWS SERVER LTSC WITH HYPER-V
- RED HAT ENTERPRISE LINUX
- SUSE LINUX ENTERPRISE SERVER
- VMWARE ESXI
