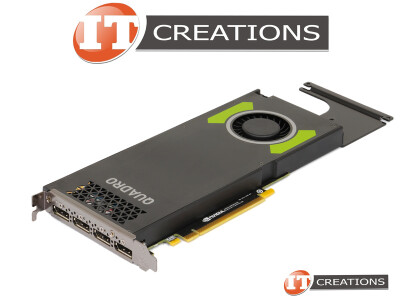

NVIDIA QUADRO P4000 PASCAL GPU 8GB 1792 CUDA PARALLEL PROCESSING CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 243GB/S PCI-E 3.0 X16 GRAPHICS PROCESSING UNIT VIDEO CARD - ACTIVE FANSINK (QUADRO P4000)

Product Details:

NVIDIA QUADRO P4000 PASCAL GPU 8GB 1792 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 243GB/S PCI-E 3.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ACTIVE FANSINK ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 4 PIN STEREO CONNECTOR ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR

MANUFACTURER: NVIDIA
PART NUMBER: QUADRO P4000

ENGINE SPECS:

ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 1792
GPU CLOCK: 1202 MHZ
BOOST CLOCK: 1480 MHZ
PEAK SINGLE PRECISION FP32 PERFORMANCE: 5.3 TFLOPS

MEMORY:

MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 243 GB/S
MEMORY CLOCK: 1901 MHZ ( EFFECTIVE: 7604 MHZ )

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC

DISPLAY SUPPORT:

MAXIMUM DP 1.4 RESOLUTION: HDR 5120 X 2880 AT 60HZ ( 30 BIT COLOR )
5K DISPLAY SUPPORT: HDR 5120 X 2880 AT 60HZ ( 30 BIT COLOR )
4K DISPLAY SUPPORT: HDR 4096 X 2160 AT 60HZ / 3840 X 2160 AT 60HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 X 1600 AT 60HZ ( VIA ADAPTER )
MAXIMUM DVI-D SL RESOLUTION: 1920 X 1200 AT 60HZ ( VIA ADAPTER )
MULTI MONITOR: YES
HDCP: 2.2

CONNECTIONS:

DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 105W
POWER CONNECTORS: ( 1 ) ONE 6 PIN POWER CONNECTOR

COOLING SYSTEM:

( 1 ) ONE ACTIVE FANSINK
