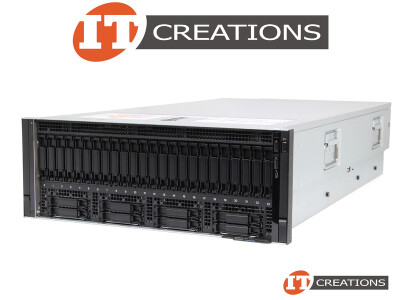

DELL EMC POWEREDGE R940XA 2.5 INCH (DELL R940XA 2.5 32B)

Product Details:

DELL EMC POWEREDGE R940XA 2.5 INCH SMALL FORM FACTOR SFF 32 BAY HPHD HPPS RACK SERVER CHASSIS

MANUFACTURER: DELL
PART NUMBER: DELL R940XA 2.5 32B

NOTE: THIS MODEL IS A STANDARD OPTION ONLY, IT DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS

PROCESSOR SUPPORT

MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 4 ) FOUR CPUs ( 2 OR 4 PROCESSOR CONFIGURATIONS ONLY - NOT COMPATIBLE WITH SINGLE OR 3 PROCESSORS )
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR FAMILY ( PLATINUM AND GOLD SERIES ) / 1ST GEN INTEL XEON SCALABLE PROCESSOR FAMILY ( PLATINUM AND GOLD SERIES )
PROCESSOR CORE: UP TO 28 CORES PER PROCESSOR
MAX PROCESSOR TDP: UP TO 205W PER PROCESSOR

MEMORY SUPPORT

MAX NUMBER OF MEMORY SLOTS: UP TO ( 48 ) FORTY EIGHT DIMM SLOTS
MEMORY SUPPORTED: UP TO ( 48 ) FORTY EIGHT RDIMM OR LRDIMM / ( 12 ) TWELVE NVDIMM / ( 24 ) TWENTY FOUR DCPMM
MEMORY SIZE: UP TO 3TB ECC RDIMM / 6TB LRDIMM / 384GB NVDIMM / 12.28TB DCPMM / 15.36TB DCPMM+LRDIMM
MEMORY SPEEDS: DDR4-3200MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )
MAX NUMBER OF CHANNELS: UP TO ( 6 ) SIX CHANNELS ( PER PROCESSOR )

STORAGE SUPPORT

HARD DRIVE SUPPORT: UP TO ( 32 ) THIRTY TWO 2.5 INCH SFF HOT PLUG HARD DRIVES ( 28 BAY SAS / SATA + 4 NVME OR 20 BAY SAS / SATA + 4 NVME )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 SSD VIA PCIE BOSS CARD / 6.4TB PCIE NVME VIA ADD IN CARD ( AIC )
STORAGE TYPE: HDD / SDD / M.2
STORAGE PROTOCOL: SAS / SATA / NVME ( NOT COMPATIBLE WITH 8 BAY CONFIGURATION )
FRONT BAYS MAX STORAGE SIZE: 245.76TB ( INCLUDING 4 NVME DRIVES )
M.2 MAX STORAGE SIZE: 2 X 240GB OR 2 X 480GB

-NOTE: M.2 STORAGE IS OPTIONAL VIA PCIE BOSS CARD AND PCIE NVME ADD IN CARD ARE NOT INCLUDED - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE STORAGE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: UP TO ( 12 ) TWELVE PCI-E 3.0 SLOTS ( X2 ON BOARD HALF HEIGHT / LOW PROFILE FORM FACTOR )
PCI INTERFACE TYPE: VARIOUS RISER CARD OPTION CONFIGURATIONS AVAILABLE

-NOTE: ADDITIONAL RISERS ARE OPTIONAL , PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

POWER SUPPORT

NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 4 ) FOUR SLOTS
MAX POWER IN WATTAGE: 2400W ( PER POWER SUPPLY )

OPERATING SYSTEMS SUPPORTED

- CANONICAL UBUNTU LTS
- CITRIX HYPERVISOR
- MICROSOFT WINDOWS SERVER LTSC WITH HYPER-V
- ORACLE LINUX
- RED HAT ENTERPRISE LINUX
- SUSE LINUX ENTERPRISE SERVER
- VMWARE ESXI
