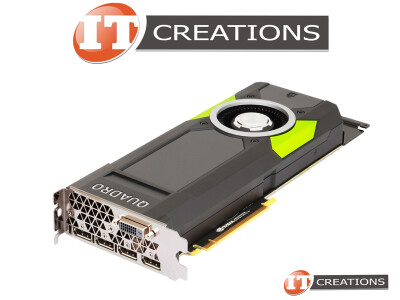

DELL NVIDIA QUADRO P5000 PASCAL GPU 16GB 2560 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5X MEMORY BANDWIDTH 288GB/S PCI-E 3.0 X16 GRAPHICS PROCESSING UNIT VIDEO CARD (QUADRO P5000-DELL)

Product Details:

DELL NVIDIA QUADRO P5000 PASCAL GPU 16GB 2560 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5X MEMORY BANDWIDTH 288GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-D ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR ( 1 ) ONE 8 PIN POWER CONNECTOR

MANUFACTURER: DELL / NVIDIA
PART NUMBER: QUADRO P5000-DELL

ENGINE SPECS:

ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 2560
BOOST CLOCK: 1733 MHZ
GPU CLOCK: 1607 MHZ

MEMORY:

MEMORY CONFIGURATION: 16GB
MEMORY INTERFACE: GDDR5X
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 288 GB/S
MEMORY CLOCK: 1127 MHZ ( EFFECTIVE: 9016 MHZ )

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC

DISPLAY SUPPORT:

MAXIMUM DP 1.4 RESOLUTION: 7680 x 4320 AT 30HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZ
MULTI MONITOR: YES
HDCP: 2.2

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-D ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 180W
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR

COOLING SYSTEM:

ACTIVE FANSINK

FORM FACTOR:

DUAL SLOT, FULL HEIGHT

DIMENSIONS:

4.4 INCH ( H ) ( MEASUREMENT INCLUDES PCIE INTERFACE ) X 10.5 INCH ( L )
