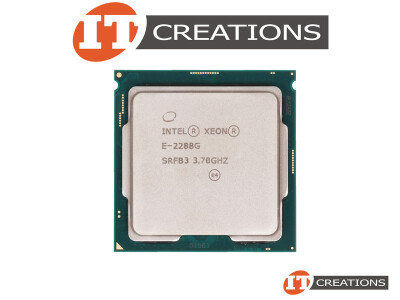

INTEL XEON 8 CORE PROCESSOR E-2288G 3.70GHZ 16MB SMART CACHE 8 GT/S BUS SPEED TDP 95W FCLGA1151 ( SOCKET H4 ) ( COFFEE LAKE ) (E-2288G)

Product Details:

INTEL XEON 6 CORE PROCESSOR E-2136 3.30GHZ 12MB SMART CACHE 8 GT/S DMI3 TDP 80W FCLGA1151 ( SOCKET H4 ) ( COFFEE LAKE )

MANUFACTURER: INTEL
PART NUMBER: E-2288G
CPU SERIES: INTEL XEON E PROCESSOR FAMILY
PROCESSOR CODE NAME: COFFEE LAKE
SOCKETS SUPPORTED: FCLGA1151 ( SOCKET H4 )
MAX CPU CONFIGURATION: 1

NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED

PERFORMANCE

CPU FREQUENCY: 3.70GHZ
CPU MAX TURBO FREQUENCY: 5.00GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 5.00GHZ
MULTI-CORE: EIGHT-CORE ( 8 CORE )
THREADS: 16
CACHE: 16MB INTEL SMART CACHE
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14NM
THERMAL DESIGN POWER: 95W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: NO

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 2666 MHZ
MAX NUM. MEMORY CHANNELS: 2
ECC MEMORY SUPPORTED: YES

PROCESSOR GRAPHICS

PROCESSOR GRAPHICS: INTEL UHD GRAPHICS P630
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.20 GHZ
GRAPHICS VIDEO MAX MEMORY: 128GB
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 24HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( VGA ): N/A
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X3E9A

EXPANSION OPTIONS

SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: 1X16 / 2X8 / 1X8 + 2X4
MAX NUM. OF PCI LANES: 16

ADVANCED TECHNOLOGIES

INTEL OPTANE MEMORY SUPPORTED: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1 / INTEL SSE4.2 / INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES

SECURITY & RELIABILITY

INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH BOTH INTEL SPS AND INTEL ME
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
