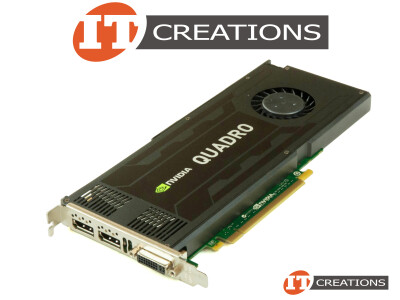

NVIDIA QUADRO K4000 KEPLER GPU 3GB 768 CUDA CORES MEMORY INTERFACE 192 BIT GDDR5 MEMORY BANDWIDTH 134.0GB/S PCI-E 2.0 X16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD (QUADRO K4000-DELL)

Product Details:

DELL NVIDIA QUADRO K4000 KEPLER GPU 3GB 768 CUDA CORES MEMORY INTERFACE 192 BIT GDDR5 MEMORY BANDWIDTH 134.0GB/S PCI-E 2.0 X16 ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD

MANUFACTURER: DELL / NVIDIA
PART NUMBER: QUADRO K4000-DELL

ENGINE SPECS:

CUDA CORES: 768

MEMORY:

MEMORY CONFIGURATION: 3GB ( 3072MB )
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 192 BIT
MEMORY BANDWIDTH: 134.0GB/S

SUPPORT:

OPENGL ( OPEN GRAPHICS LIBRARY ): 4.4
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
SUPPORTED TECHNOLOGIES: PROFESSIONAL 3D SUPPORT, NVIDIA 3D VISION PRO, HD SDI CAPTURE / OUTPUT COMPATIBLE, NVIDIA GPUDIRECT SUPPORT, NVIEW DESKTOP MANAGEMENT SOFTWARE COMPATIBLE, HDCP SUPPORT, NVIDIA MOSAIC, SMX CUDA, SHADER MODEL 5.0, OPENGL 4.4, DIRECTX 11, DIRECTCOMPUTE, OPENCL

DISPLAY SUPPORT:

MAXIMUM DISPLAYPORT 1.2 RESOLUTION: 3840 X 2160 AT 60HZ
MAXIMUM DUAL LINK DVI-I RESOLUTION: 2560 X 1600 AT 60HZ
MAXIMUM SINGLE LINK DVI-I RESOLUTION: 1920 X 1200 AT 60HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 AT 85HZ

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I ( 2 ) TWO DISPLAYPORTS
POWER CONNECTORS: ( 1 ) ONE 6 PIN

THERMAL AND POWER SPECS:

MAXIMUM POWER CONSUMPTION: 80W

COOLING SYSTEM:

ACTIVE FANSINK

FORM FACTOR:

SINGLE SLOT, FULL HEIGHT
