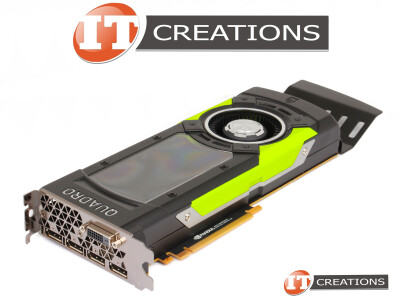

HP NVIDIA QUADRO GP100 PASCAL GPU 16GB 3584 CUDA CORES MEMORY INTERFACE 4096 BIT HBM2 MEMORY BANDWIDTH 717GB/S PCI-E 3.0 X16 GRAPHICS PROCESSING UNIT VIDEO CARD (699-5H400-0500-500-HP)

Product Details:

HP NVIDIA QUADRO GP100 PASCAL GPU 16GB 3584 CUDA CORES MEMORY INTERFACE 4096 BIT HBM2 MEMORY BANDWIDTH 717GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL INK DVI-D ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD

MANUFACTURER: HP / NVIDIA
PART NUMBER: 699-5H400-0500-500-HP

ENGINE SPECS:

ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 3584
GPU CLOCK: 1304 MHZ
BOOST CLOCK: 1442 MHZ
FP64 PERFORMANCE: 5.2 TFLOPS
FP32 PERFORMANCE: 10.3 TFLOPS
FP16 PERFORMANCE: 20.7 TFLOPS

MEMORY:

MEMORY CONFIGURATION: 16GB
MEMORY INTERFACE: HBM2
MEMORY INTERFACE WIDTH: 4096 BIT
MEMORY BANDWIDTH: 717 GB/S
MEMORY CLOCK: 715 MHZ ( EFFECTIVE: 1430 MHZ )
ERROR CORRECTION CODE ( ECC ): YES ( DISABLED BY DEFAULT )

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, NVIDIA NVLINK SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC, NVIDIA IRAY AND MENTAL RAY SUPPORT

DISPLAY SUPPORT:

DISPLAY RESOLUTION: 4096 X 2160 AT 120HZ
DISPLAY RESOLUTION: 5120 X 2880 AT 60HZ
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )
HDCP: 2.2

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DUAL INK DVI-D ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO NVLINK INTERFACES ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 235W

COOLING SYSTEM:

ACTIVE FANSINK - ( 1 ) ONE FAN BLOWER

FORM FACTOR:

DUAL SLOT, FULL LENGTH, FULL HEIGHT
