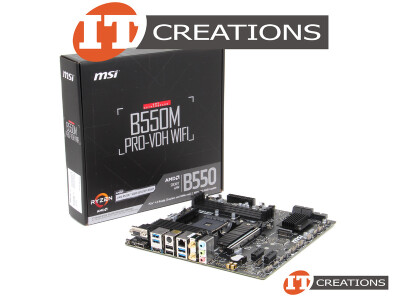

MSI B550M PRO-VDH WIFI MICRO-ATX MOTHERBOARD - MATX SYSTEM BOARD ( 1 ) ONE AM4 SOCKET ( COMPATIBLE WITH 3RD GEN AMD RYZEN / 5000 / 3000 SERIES ) ( 4 ) FOUR DDR4 DIMM SLOTS ( 2 ) TWO M.2 M KEY INTERFACES (B550MPVDHWIFI-NEW)

Product Details:

MSI B550M PRO-VDH WIFI MICRO-ATX MOTHERBOARD - MATX SYSTEM BOARD ( 1 ) ONE AM4 SOCKET ( COMPATIBLE WITH 3RD GEN AMD RYZEN / 5000 / 3000 SERIES ) ( 4 ) FOUR DDR4 DIMM SLOTS ( 2 ) TWO M.2 M KEY INTERFACES

MANUFACTURER: MSI
PART NUMBER: B550MPVDHWIFI-NEW

PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 1 ) ONE PROCESSOR
SOCKET TYPE: AMD AM4 SOCKET
PROCESSOR TYPE: 3RD GEN AMD RYZEN / 5000 / 3000 SERIES

MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 4 TOTAL MEMORY SLOTS
MEMORY SIZE CAPACITY: UP TO 128GB ( 32GB SINGLE DIMM CAPACITY )
MEMORY CHANNELS: DUAL CHANNEL
MEMORY TYPE ( DDR4 ): UP TO 4400MHZ ( BY JEDEC AND A-XMP OC MODE )

LAN

-REALTEK RTL8111HN GIGABIT

STORAGE DETAIL

NUMBER OF M.2 INTERFACES: X2 M.2 M KEY INTERFACES
INTERFACES ( THROUGH CPU PROTOCOLS ): X1 2242 / 2260 / 2280 SATA OR PCIE 4.0 X4 X2 ( SPEEDS VARIES BY CPU ) ( WITH SHIELD FROZR THERMAL SOUTION HEATSINK )
INTERFACES ( THROUGH B550 CHIPSET PROTOCOL ): X1 2242 / 2260 / 2280 PCIE 3.0 X4 X2
STORAGE CONNECTORS: X4 SATA 6GB/S
RAID SUPPORT: RAID 0, RAID 1, RAID 10 ( SATA ) / RAID 0, RAID 1 ( M.2 NVME )

SLOT DETAIL

INTERFACES: X3 PCI SLOTS
INTERFACE TYPE: X1 AT PCI-E 4.0 3.0 X16 / X2 AT PCI-E 3.0 X1

ADDITIONAL INFORMATION

FORM FACTOR: M-ATX ( MICRO ADVANCED TECHNOLOGY EXTENDED 9.6 INCH X 9.6 INCH )
OPERATING SYSTEMS SUPPORTED: MICROSOFT WINDOWS 10 64 BIT
