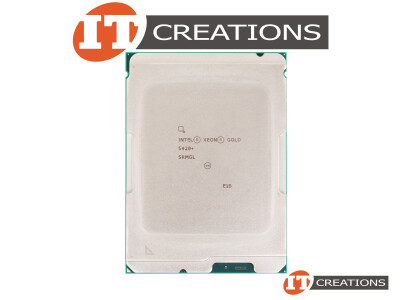

INTEL XEON GOLD 28 CORE PROCESSOR 5420+ 2.00GHZ 52.5MB CACHE TDP 205W 2S FCLGA4677 ( SAPPHIRE RAPIDS ) ( 4TH GEN SCALABLE ) (GOLD 5420-PLUS)

Product Details:

INTEL XEON GOLD 28 CORE PROCESSOR 5420+ 2.00GHZ 52.5MB CACHE TDP 205W 2S FCLGA4677 ( SAPPHIRE RAPIDS ) ( 4TH GEN SCALABLE )

MANUFACTURER: INTEL
PART NUMBER: GOLD 5420-PLUS
CPU SERIES: 4TH GEN INTEL XEON SCALABLE ( GOLD 5400 SERIES )
PROCESSOR CODE NAME: SAPPHIRE RAPIDS
SOCKETS SUPPORTED: FCLGA4677

NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED

PERFORMANCE

CPU FREQUENCY: 2.00GHZ
CPU MAX TURBO FREQUENCY: 4.10GHZ
MULTI-CORE: 28-CORE
THREADS: 56
CACHE: 52.5MB
INTEL UPI SPEED: 16GT/S
MAX NUMBER UPI LINKS: 3
LITHOGRAPHY: INTEL 7
THERMAL DESIGN POWER: 205W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: YES

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 6TB ( 6,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 4400 MHZ
MAX NUM. MEMORY CHANNELS: 8
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: YES
ECC MEMORY SUPPORTED: YES

EXPANSION OPTIONS

SCALABILITY: 2S
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 80

ADVANCED TECHNOLOGIES

INTEL ON DEMAND FEATURE ACTIVATION: YES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
HIGH PRIORITY CORES: 8
HIGH PRIORITY CORE FREQUENCY: 2.20GHZ
LOW PRIORITY CORES: 20
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2

SECURITY & RELIABILITY

INTEL CRYPTO ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 128GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
