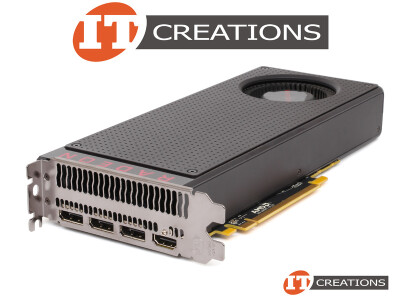

AMD RADEON RX 480 GPU 4GB 2304 STREAM PROCESSORS MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 224GB/S PCI-E 3.0 X16 ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - DUAL SLOT DIMENSIONS 9.5 INCH L X 4.4 IN H X 1.5 INCH W (RADEON RX 480)

Product Details:

AMD RADEON RX 480 GPU 4GB 2304 STREAM PROCESSORS MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 224GB/S PCI-E 3.0 X16 ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD

MANUFACTURER: AMD
PART NUMBER: RADEON RX 480

ENGINE SPECS:

ENGINE ARCHITECTURE: POLARIS
STREAMING CORES: 2304
MAX PRECISION FLOATING PERFORMANCE: 5.8 TFLOPS ( TERA FLOPS )
GPU CLOCK: 1120 MHZ
BOOST CLOCK: 1266 MHZ

MEMORY:

MEMORY CONFIGURATION: 4GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 224 GB/S
MEMORY TRANSFER RATE: 7 GB/S

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: AMD RADEON VR READY PREMIUM, AMD RADEON CHILL, AMD EYEFINITY TECHNOLOGY ( GAMING ), AMD CROSSFIRE ( BRIDGELESS ), OPENCL 2.0, TRUEAUDIO NEXT, AMD VIRTUAL SUPER RESOLUTION, AMD GAMING EVOLVED CLIENT, AMD FREESYNC TECHNOLOGY, AMD RADEON RELIVE, CATALYST SOFTWARE, AMD FRAME RATE TARGET CONTROL, OPENGL 4.5, UNIFIED VIDEO DECODER ( UVD ), THE VULKAN API, 4TH GEN GCN ARCHITECTURE, DIRECTX 12 TECHNOLOGY, AMD CROSSFIRE TECHNOLOGY, 3RD GEN 14NM PROCESS TECHNOLOGY, AMD POWERTUNE TECHNOLOGY, VIDEO CODE ENGINE ( VCE ), AMD ZEROCORE POWER TECHNOLOGY, HDMI 4K SUPPORT, 4K H264, 4K H264 ENCODE, H265 / HEVC DECODE, H265 / HEVC ENCODE, PCI EXPRESS GEN3
OPERATING SYSTEMS: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 10, UBUNTU X86, LINUX X86

DISPLAY SUPPORT:

MULTI MONITOR: YES ( UP TO 4 MONITORS )

CONNECTIONS:

DISPLAY CONNECTORS: ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI
POWER CONNECTORS: ( 1 ) ONE 6 PIN POWER CONNECTOR

THERMAL AND POWER SPECS:

BOARD MAX POWER CONSUMPTION ( W ): 150W
POWER RECOMMENDED ( W ): 500W

COOLING SYSTEM:

ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE ACTIVE FAN BLOWER )

FORM FACTOR:

DUAL SLOT, FULL HEIGHT

DIMENSIONS:

4.4 INCH ( H ) X 9.5 INCH ( L )
