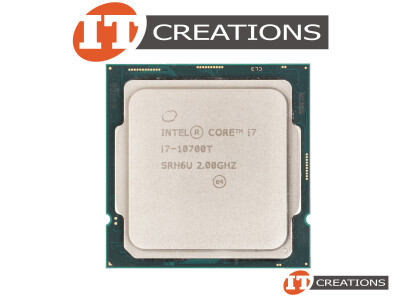

INTEL CORE I7 8 CORE PROCESSOR I7-10700T 2.00GHZ BASE / 4.50GHZ MAX 16MB SMART CACHE 8 GT/S BUS SPEED TDP 35W FCLGA1200 ( COMET LAKE ) (SRH6U)

Product Details:

INTEL CORE I7 8 CORE PROCESSOR I7-10700T 2.00GHZ BASE / 4.50GHZ MAX 16MB SMART CACHE 8 GT/S BUS SPEED TDP 35W FCLGA1200 ( COMET LAKE )

MANUFACTURER: INTEL
PART NUMBER: SRH6U
CPU SERIES: 10TH GEN INTEL CORE I7 PROCESSORS FAMILY
PROCESSOR CODE NAME: COMET LAKE
SOCKETS SUPPORTED: FCLGA1200
MAX CPU CONFIGURATION: 1

NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED

PERFORMANCE

CPU FREQUENCY: 2.00GHZ
CPU MAX TURBO FREQUENCY: 4.50GHZ
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 FREQUENCY: 4.50GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.40GHZ
MULTI-CORE: 8-CORE
THREADS: 16
CACHE: 16MB INTEL SMART
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER ( TDP ): 65W
CONFIGURABLE TDP-DOWN BASE FREQUENCY: 1.30GHZ
CONFIGURABLE TDP-DOWN: 25W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: NO

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4-2933
MAX NUM. MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 45.8GB/S
ECC MEMORY SUPPORTED: NO

PROCESSOR GRAPHICS

PROCESSOR GRAPHICS: INTEL UHD GRAPHICS 630
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.20 GHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
GRAPHICS OUTPUT: EDP / DP / HDMI / VGA
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 30HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( EDP ): 4096 X 2304 AT 60HZ
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X9BC5

EXPANSION OPTIONS

SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: UP TO 1X16, 2X8, 1X8 + 2X4
MAX NUMBER OF PCI EXPRESS LANES: 16

ADVANCED TECHNOLOGIES

INTEL OPTANE MEMORY SUPPORTED: YES
INTEL THERMAL VELOCITY BOOST: NO
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: NO
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL IDENTITY PROTECTION TECHNOLOGY: YES

SECURITY & RELIABILITY

INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES, WITH INTEL ME
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL STABLE IMAGE PLATFORM PROGRAM ( SIPP ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
