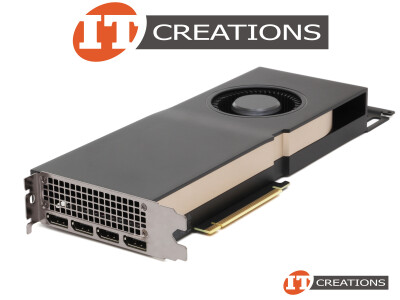

NVIDIA RTX A5500 GPU 24GB 10240 CUDA CORES MEMORY INTERFACE 384 BIT GDDR6 MEMORY BANDWIDTH 768GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - AMPERE ARCHITECTURE (NVIDIA RTX A5500-DELL)

Product Details:

NVIDIA RTX A5500 GPU 24GB 10240 CUDA CORES MEMORY INTERFACE 384 BIT GDDR6 MEMORY BANDWIDTH 768GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - AMPERE ARCHITECTURE

MANUFACTURER: DELL / NVIDIA
PART NUMBER: NVIDIA RTX A5500-DELL

ENGINE SPECS:

ENGINE ARCHITECTURE: AMPERE
CUDA CORES: 10240
TENSORE CORES ( 3RD GEN ): 320
RT CORES ( 2ND GEN ): 80
SINGLE PRECISION PERFORMANCE: 34.1 TFLOPS
RT CORE PERFORMANCE: 66.6 TFLOPS
TENSOR PERFORMANCE: 272.8 TFLOPS
GPU CLOCK: 1080 MHZ
BOOST CLOCK: 1665 MHZ
PROCESS SIZE: 8NM
TRANSISTORS: 28.3 BILLION
DIE SIZE: 628 MM SQUARE

MEMORY:

MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 768 GB/S
MEMORY CLOCK: 16 GB/S

SUPPORT:

BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA AMPERE ARCHITECTURE, CUDA CORES TECHNOLOGY, 2ND GEN RT CORES, 3RD GEN TENSOR CORES, VIRTUALIZATION READY, 3RD GEN NVIDIA NVLINK, DIRECT COMPUTE, OPENCL 3.0, DIRECTX 12 ULTIMATE, SHADER MODEL 6.6, OPENGL 4.6, VULKAN 1.3, NVIDIA VPC / VAPPS, NVIDIA RTX VIRTUAL WORKSTATION, VR READY, 1X ENCODE + 2X DECODE ( +AV1 DECODE ), NVIDIA VIRTUAL GPU ( VGPU ) SOFTWARE SUPPORT, NVIDIA GPUDIRECT FOR VIDEO SUPPORT, NVIDIA QUADRO SYNC II COMPATIBILITY, NVIDIA RTX EXPERIENCE, NVIDIA RTX DESKTOP MANAGER SOFTWARE, NVIDIA RTX IO SUPPORT, HDCP 2.2 SUPPORT, NVIDIA MOSAIC TECHNOLOGY, PCI EXPRESS GEN4
ERROR CORRECTION CODE ( ECC ): YES
NVLINK SUPPORT: YES, 2-WAY ( 3RD GEN )
NVLINK INTERCONNECT: 112.5GB/S BIDIRECTIONAL

DISPLAY SUPPORT:

DISPLAY RESOLUTION: 7680 X 4320 AT 60HZ ( 2 DISPLAYS ) OR 5120 X 2880 AT 60HZ ( 4 DISPLAYS ) OR 4096 X 2160 AT 120HZ ( 4 DISPLAYS )
MULTI MONITOR: YES, UP TO 4 DISPLAYS

CONNECTIONS:

DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR

THERMAL AND POWER SPECS:

TOTAL POWER CONSUMPTION ( W ): 230W
RECOMMENDED PSU ( W ): 550W

COOLING SYSTEM:

ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE FAN BLOWER )

FORM FACTOR:

DUAL SLOT

DIMENSIONS:

10.5 INCH ( L ) X 4.4 INCH ( H )
