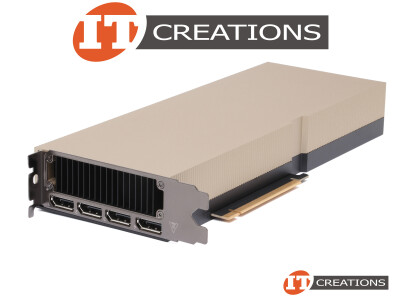

NVIDIA L40 GPU ACCELERATOR 48GB 18176 CUDA CORES GDDR6 PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GENERAL PURPOSE GRAPHICS PROCESSING UNIT GPGPU - ADA LOVELACE ARCHITECTURE (699-2G133-0250-L00)

Product Details:

NVIDIA L40 GPU ACCELERATOR 48GB 18176 CUDA CORES GDDR6 PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GENERAL PURPOSE GRAPHICS PROCESSING UNIT GPGPU - ADA LOVELACE ARCHITECTURE DUAL SLOT DIMENSIONS: 10.5 INCH L X 4.4 IN H

MANUFACTURER: NVIDIA
PART NUMBER: 699-2G133-0250-L00

ENGINE SPECS:

ENGINE ARCHITECTURE: ADA LOVELACE
GPU CLOCK ( BASE ): 735 MHZ
BOOST CLOCK: 2490 MHZ
CUDA CORES: 18,176
NVIDIA THIRD GEN RT CORES: 142
NVIDIA FOURTH GEN TENSOR CORES: 568
RT CORE PERFORMANCE: 209 TFLOPS
FP32 PERFORMANCE: 90.5 TFLOPS
FP32 TENSOR PERFORMANCE: 90.5 TFLOPS / 181 TFLOPS ( WITH SPARSITY )
BFLOAT16 TENSOR PERFORMANCE: 181.05 TFLOPS / 362.1 TFLOPS ( WITH SPARSITY )
FP16 TENSOR PERFORMANCE: 181.05 TFLOPS / 362.1 TFLOPS ( WITH SPARSITY )
FP8 TENSOR PERFORMANCE: 362 TFLOPS / 724 TFLOPS ( WITH SPARSITY )
PEAK INT8 TENSOR TOPS PERFORMANCE: 362 TFLOPS / 724 TFLOPS ( WITH SPARSITY )
PEAK INT4 TENSOR TOPS PERFORMANCE: 724 TFLOPS / 1448 TFLOPS ( WITH SPARSITY )

MEMORY:

MEMORY CONFIGURATION: 48GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 864 GB/S
MEMORY CLOCK: 9,001 MHZ
ERROR CORRECTION CODE ( ECC ): YES

SUPPORT:

BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16 ( ALSO SUPPORTED ON PCI-E 4.0 X8 / PCI-E 3.0 X16 )
BUS SPEEDS: 64GB/S BIDIRECTIONAL
SUPPORTED TECHNOLOGIES: NVIDIA CUDA CORE TECHNOLOGY ( 12.0 OR LATER ), THIRD GENERATION RT CORES, FOURTH GENERATION TENSOR CORES, RAY TRACING TECHNOLOGY, VIRTUAL GPU SOFTWARE SUPPORTED ( VGPU ), VGPU PROFILE SUPPORTED, NVENC 3X / NVDEC 3X ( INCLUDES AV1 ENCODE / DECODE ), SECURE BOOT WITH ROOT OF TRUST, NEBS READY LEVEL 3, FRAME LOCK SUPPORT VIA QUADRO SYNC II BOARD ( NOT INCLUDED ), PCI-E GEN4
OPERATING SYSTEMS: MICROSOFT WINDOWS 7, WINDOWS 8.1, WINDOWS 10, WINDOWS 11, WINDOWS SERVER 2012 R2, WINDOWS SERVER 2019, WINDOWS SERVER 2022, LINUX ( ENGLISH )

CONNECTIONS:

DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE PCIE 16 PIN POWER CONNECTOR ( 12P+4P )

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 300W

COOLING SYSTEM:

PASSIVE HEATSINK ( BIDIRECTIONAL AIRFLOW )

FORM FACTOR:

DUAL SLOT, FULL HEIGHT FULL LENGTH

DIMENSIONS:

10.5 INCH ( L ) X 4.4 INCH ( H )
