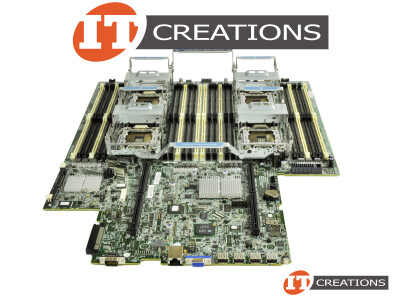

HP MOTHERBOARD (664924-00A)

Product Details:

HP MOTHERBOARD FOR HP PROLIANT DL560 G8 ( GEN8 ) - SYSTEM BOARD LATCH TYPE / CAGED

MANUFACTURER: HP
PART NUMBER: 664924-00A
COMPATIBILITY: HP PROLIANT DL560 G8 ( GEN8 )

PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 4 ) FOUR PROCESSORS
SOCKET TYPE: FCLGA2011-3
PROCESSOR TYPE: INTEL XEON E5-4600 / INTEL XEON E5-4600V2 PROCESSOR FAMILY

MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 48 TOTAL MEMORY SLOTS ( 12 DIMM SLOTS PER PROCESSOR / 4 CHANNELS PER PROCESSOR / 3 DIMMs PER CHANNEL )
MEMORY TYPE: UP TO DDR3-1866
MEMORY SIZE CAPACITY: UP TO 1.5TB LRDIMM ( 1866MHZ ) OR UP TO 1.5TB RDIMM ( 1600MHZ )

PCI INTERFACE DETAIL

NUMBER OF PCI SLOTS: 2 INTERFACES ( UP TO 6 PCI SLOTS VIA RISER BOARDS / RISER CARDS NOT INCLUDED WITH SYSTEM BOARD )

PRIMARY RISER ( STANDARD ):
- SLOT1 PCI-E 3.0 X16 ( CPU1 ) ( FULL HEIGHT / FULL LENGTH )
- SLOT2 PCI-E 3.0 X8 ( CPU1 ) ( FULL HEIGHT / HALF HEIGHT )
- SLOT2 PCI-E 2.0 X4 ( X8 WIRED - FULL HEIGHT / HALF LENGTH )

SECONDARY RISER ( OPTIONAL 3-SLOT ):
- SLOT4 PCI-E 3.0 X16 ( CPU2 ) ( FULL HEIGHT / FULL LENGTH )
- SLOT5 PCI-E 3.0 X8 ( CPU2 ) ( FULL HEIGHT / HALF HEIGHT )
- SLOT6 PCI-E 3.0 X8 ( CPU2 ) ( FULL HEIGHT / HALF LENGTH )

SECONDARY RISER ( OPTIONAL 2-SLOT ):
- SLOT4 PCI-E 3.0 X16 ( CPU2 ) ( FULL HEIGHT / HALF LENGTH )
- SLOT5 PCI-E 3.0 X16 ( CPU2 ) ( FULL HEIGHT / HALF HEIGHT )

ADDITIONAL PCI INFORMATION: OPTIONAL FLEXIBLE LOM SLOT
