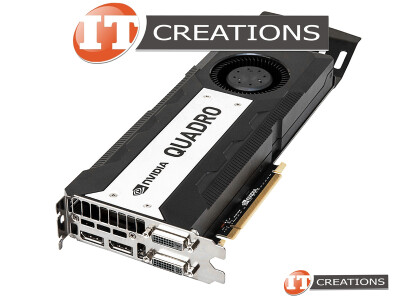

DELL NVIDIA QUADRO K6000 KEPLER GPU 12GB 2880 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 288GB/S PCI-E 3.0 X16 GRAPHICS PROCESSING UNIT VIDEO CARD (QUADRO K6000-DELL)

Product Details:

DELL NVIDIA QUADRO K6000 KEPLER GPU 12GB 2880 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5 MEMORY BANDWIDTH 288GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-I ( 1 ) ONE DUAL LINK DVI-D ( 2 ) TWO DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD

MANUFACTURER: DELL / NVIDIA
PART NUMBER: QUADRO K6000-DELL

ENGINE SPECS:

ENGINE ARCHITECTURE: KEPLER
CUDA CORES: 2880
GPU CLOCK: 797 MHZ
BOOST CLOCK: 902 MHZ
SINGLE PRECISION PERFORMANCE: 5.1 TFLOPS ( TERAFLOPS )

MEMORY:

MEMORY CONFIGURATION: 12GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 288 GB/S
MEMORY CLOCK: 1502 MHZ ( EFFECTIVE: 6008 MHZ )
ERROR CORECTION CODE ( ECC ): YES

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.0, OPENGL 4.3, DIRECTX 11, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA 3D VISION PRO, QUADRO SYNC COMPATIBILITY, NVIDIA GPUDIRECT SUPPORT, NVIDIA NVIEW DESKTOP, HDCP SUPPORT, NVIDIA MOSAIC
OPERATING SYSTEMS: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, LINUX

DISPLAY SUPPORT:

MAXIMUM DP 1.2 RESOLUTION: 4096 X 2160 AT 60HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZ
MAXIMUM DVI-D SL RESOLUTION: 1920 X 1200 AT 60HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 AT 85HZ
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I CONNECTOR ( 1 ) ONE DUAL LINK DVI-D CONNECTOR ( 2 ) TWO DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 1 ) ONE SDI / SYNC INTERFACE ( 1 ) ONE SLI INTERFACE ( 1 ) ONE 4 PIN STEREO
POWER CONNECTORS: ( 2 ) TWO 6 PIN POWER CONNECTOR

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 225W

COOLING SYSTEM:

ACTIVE FANSINK - ( 1 ) ONE FAN BLOWER

FORM FACTOR:

DUAL SLOT, FULL LENGTH, FULL HEIGHT / HIGH PROFILE
