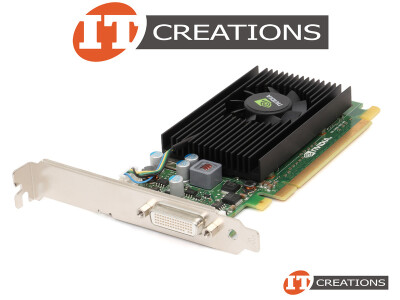

NVIDIA NVS 315 FERMI GPU 1GB 48 CUDA CORES MEMORY INTERFACE 64 BIT DDR3 MEMORY BANDWIDTH 14.0GB/S PCI-E 2.0 X16 ( 1 ) ONE DMS-59 CONNECTION GRAPHICS PROCESSING UNIT VIDEO CARD ( NVS315 ) (NVS 315-HIGH P)

Product Details:

NVIDIA NVS 315 FERMI GPU 1GB 48 CUDA CORES MEMORY INTERFACE 64 BIT DDR3 MEMORY BANDWIDTH 14.0GB/S PCI-E 2.0 X16 ( 1 ) ONE DMS-59 CONNECTION GRAPHICS PROCESSING UNIT VIDEO CARD ( NVS315 )

MANUFACTURER: NVIDIA
PART NUMBER: NVS 315-HIGH P

ENGINE SPECS:

ENGINE ARCHITECTURE: FERMI
CUDA CORES: 48
GPU CLOCK ( BASE ): 523 MHZ

MEMORY:

MEMORY CONFIGURATION: 1GB
MEMORY INTERFACE: DDR3
MEMORY INTERFACE WIDTH: 64 BIT
MEMORY BANDWIDTH: 14 GB/S
MEMORY CLOCK: 875 MHZ ( EFFECTIVE: 1750 MHZ )

SUPPORT:

BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.0, OPENGL 4.1, DIRECTX 11, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENACC, NVIDIA NVIEW DESKTOP MANAGEMENT SOFTWARE COMPATIBILITY, HDCP SUPPORT, NVIDIA MOSAIC
OPERATING SYSTEM: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, LINUX

DISPLAY SUPPORT:

MAXIMUM DP 1.2 RESOLUTION: 2560 X 1600 AT 60HZ ( VIA ADAPTER )
MAXIMUM DVI-I SL RESOLUTION: 1920 X 1200 AT 60HZ ( VIA ADAPTER )
MAXIMUM VGA RESOLUTION: 2048 X 1536 AT 85HZ ( VIA ADAPTER )
MULTI MONITOR: YES
HDCP: YES

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DMS-59 PIN

THERMAL AND POWER SPECS:

MAX POWER CONSUMPTION ( W ): 19.3W
IDLE POWER CONSUMPTION: 7W

COOLING SYSTEM:

( 1 ) ONE ACTIVE FANSINK
