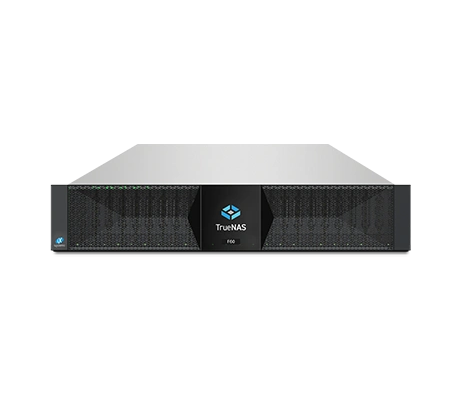

With a 2U chassis, the TrueNAS F60 Storage appliance houses a maximum of 24x 2.5-inch NVMe SSD drive bays. Offering 2x storage controllers providing continuous accessibility and preventing downtime, this system is ideal for mission-critical, high-performance operations. Each controller features a CPU with 32x physical cores and 64x virtual threads. Up to 4x 40/100 GbE optical networking ports are available on the rear of the system.

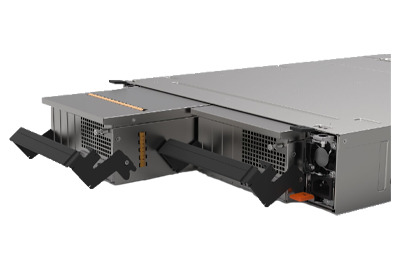

Designed for rapid scale-up and scale-out, the TrueNAS F60 offers fantastic performance in a compact, 2U chassis. Dual controllers are housed on this system, each with 512GB of Dynamic Random Access Memory (DRAM). Accessible from the front of the server, 24x 2.5-inch NVMe SSDs can be installed with a maximum throughput of 20 GB/s. The maximum memory capacity on this system is 2.1PB. On the rear of the system, there are 4x 40/100GbE optical ports, along with 2x 10GbE Base-T ports. System management is achieved by a single IPMI Out-of-Band port. A WebUI port is also available. Maximum power draw on this system is 996 Watts at peak performance. The typical power draw is 600 Watts provided by dual redundant power supplies. System cooling is achieved by 5 + 1 redundant fans.
TrueNAS Scale 23.10 software is available for download with all TrueNAS F-Series storage platforms. It offers an improved application UI plus an enhanced storage pool UI. It also provides for file-based, block-based and Object protocols, plus networking, virtualization and a self-healing file system. These are just a few of the benefits to TrueNAS Enterprise 23.10 software to help Administrators manage the infrastructure more effectively. This solution supports a number of data-intensive uses including Containerization, virtualization, gaming, database servers, and AI/Machine Learning applications.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
